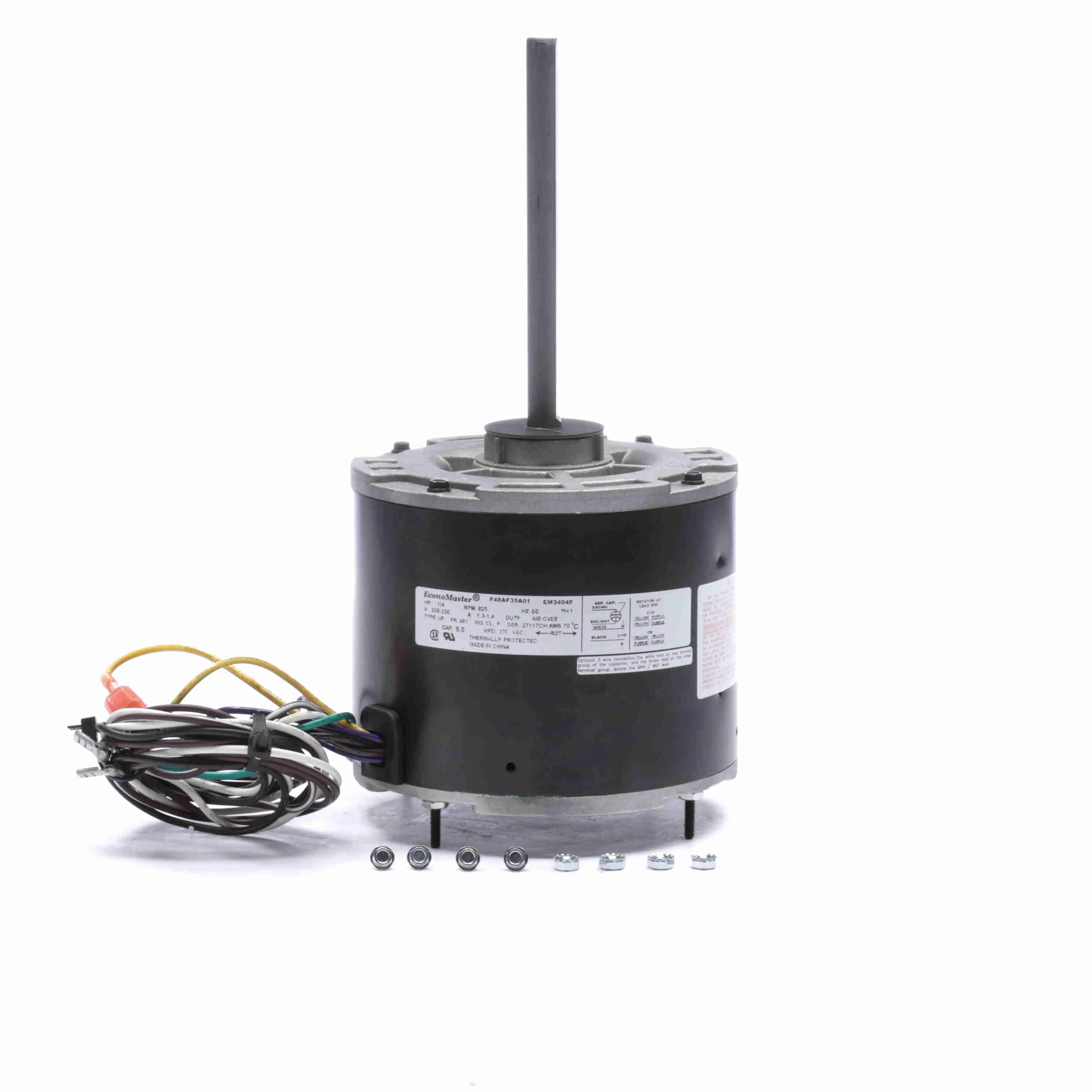

RBC REGAL BELOIT EM3404F Condenser Motor 1/4HP 230V 825RPM 48Y Frame 1/2" Shaft

The Genteq EM3404F motor from Regal Rexnord is a high-performance 1/4 HP condenser fan motor designed for reliable operation in demanding applications. Featuring a 5.6" diameter and 48 frame, this Permanent Split Capacitor (PSC) motor operates at 825 RPM on 208-230V and 60 Hz. It boasts a Totally Enclosed Air Over (TEAO) design for enhanced durability and protection, along with Class F insulation for operation up to a 70°C ambient temperature. The motor is thermally protected and equipped with ball bearings for smooth, long-lasting performance. Its reversible rotation and extended studs on the lead end offer versatile mounting options, including the ability to use a belly band mount. Requires a 5 Mfd-370 Volts capacitor (not supplied).

Technical Details

This Regal Rexnord - Genteq EM3404F is a 1/4 HP, 825 RPM reversible motor operating on 208-230V and 60 Hz. It features a 48Y frame and a totally enclosed enclosure type. The motor has 8 poles and draws between 1.3-1.4 amps. It includes a 1/2" diameter shaft with a double flat, 36" leads, and extended studs for mounting. The dimensions are 14.5" x 7.35" x 7.2" and it weighs 13.65 lb.

Technical Specifications
