The T1-R3100 is a 115V, 1-phase motor with a 0.60 Amps rating and 3000 RPM speed. It has a 1/145 HP motor, a 1.00 service factor, and operates at 40°C ambient temperature. The shaft dimensions are 0.218 inches by 1.7 inches, and the motor length is 0.65 inches. It utilizes sleeve bearings and has studs for mounting.

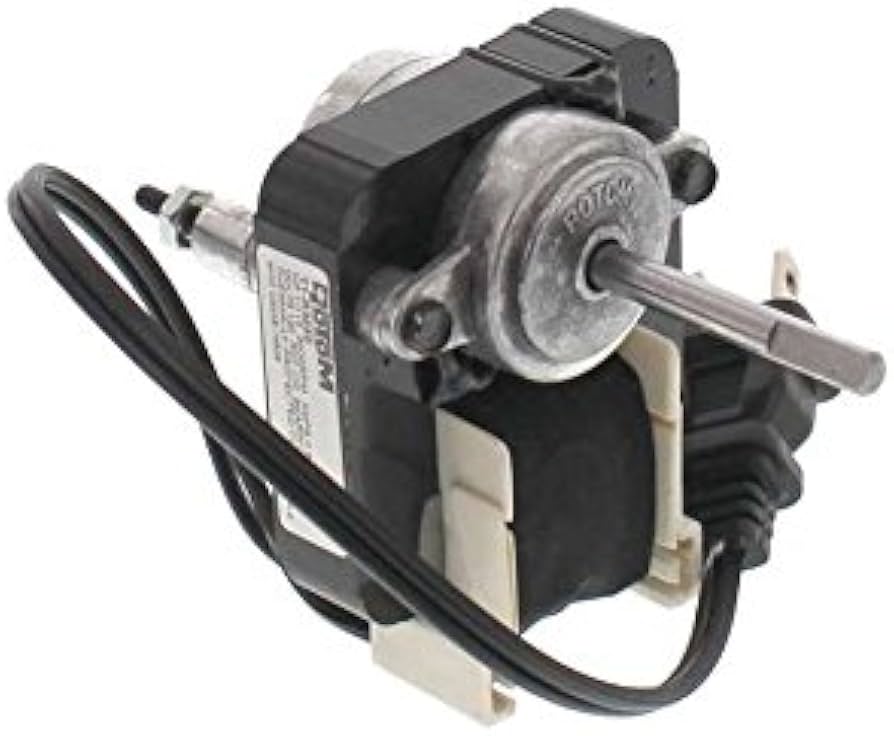

Vent Motor With Blade
Specifications
| Voltage | 115 V |
|---|---|
| Horsepower | 1/150 HP |
| RPM | 3000 RPM |
| Phase | 1 Ph |
| Frequency | 60 Hz |
| Shaft Diameter | 7/32 |
