TECHTOP FDR0022C-C-01 TEFC Motor 2hp 115-230v 1ph 3600rpm Fr56hc

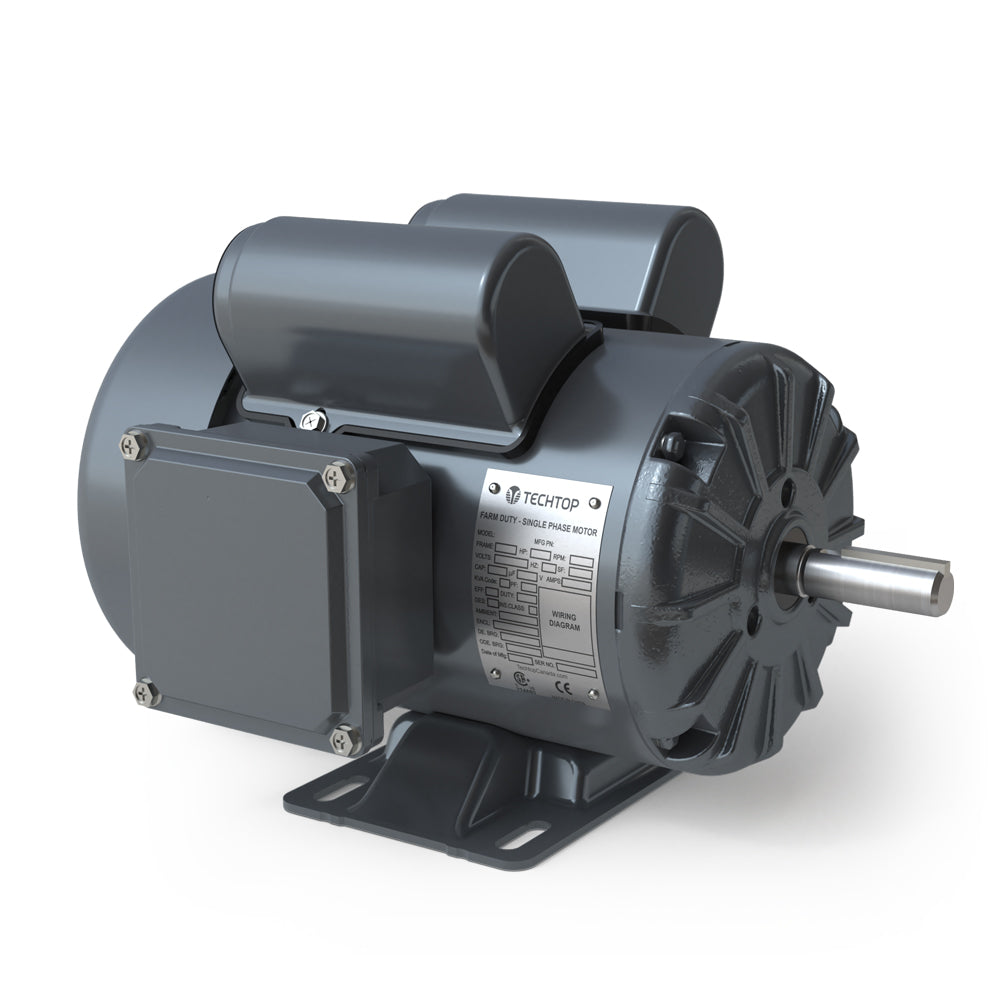

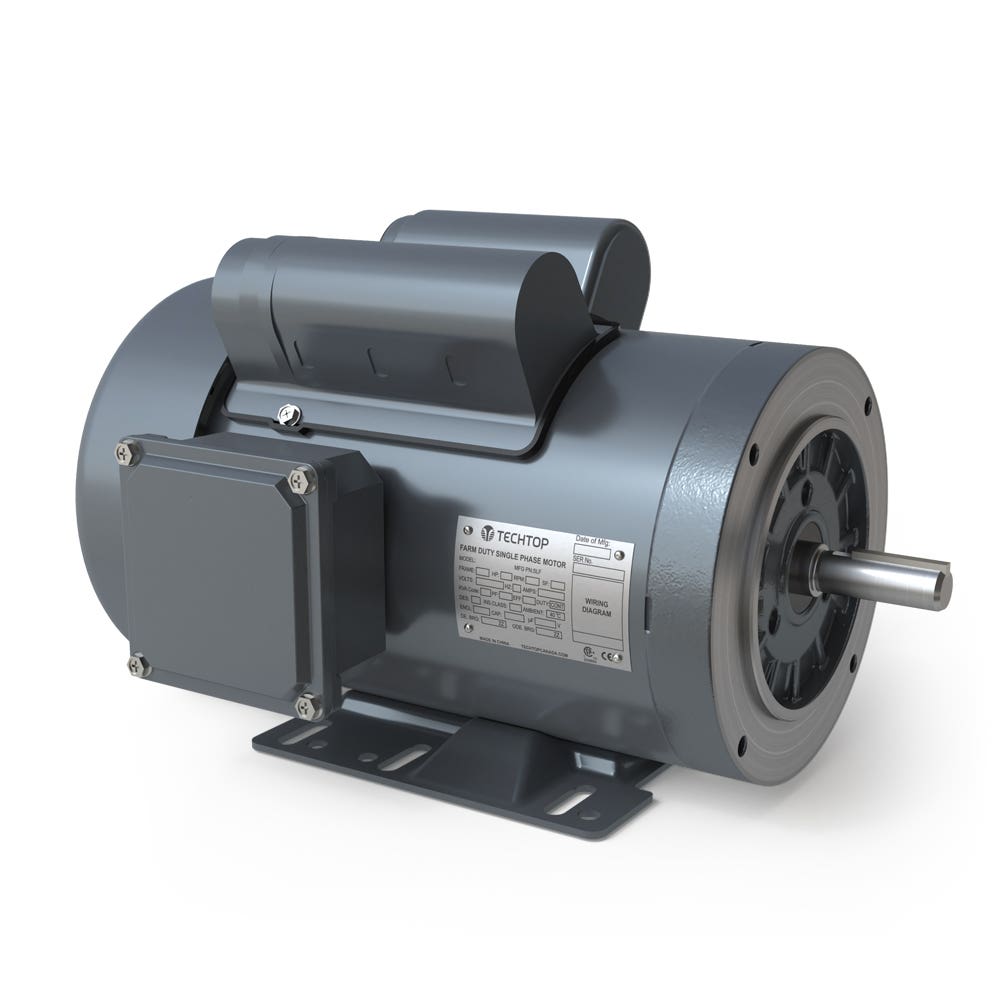

Experience reliable performance with the Techtop Canada General Purpose Single Phase Motor, FDR0022C-C-01. This motor features a robust cold rolled steel construction with cast iron end bells and a C-flange for secure mounting. Designed for energy efficiency with a dual capacitor system, it delivers high starting torque and low current draw, making it ideal for numerous general purpose and industrial applications. Enjoy peace of mind with an 18-month warranty and standard features like Klixon manual reset thermal overload protectors and corrosion-resistant hardware.

Technical Details

This is a 2 HP, 1-phase electric motor operating at 3600 RPM. It supports dual voltage input of 115/208-230V at 60Hz and features a TEFC (Totally Enclosed Fan Cooled) enclosure. The motor is built with a 56HC frame size and offers Rigid/C-Flange mounting. Key electrical specifications include a rated current of 18.2/10.0-9.1A, a locked rotor current of 61.02A at high voltage, and a service factor of 1.15. It is designed with Class F insulation and operates within a temperature rise of 55ºC at full load. The motor weighs approximately 43 lbs.
