The US Motors 1146 is a 1-speed, 1-phase, 1/6 HP motor operating at 1100 RPM and 60 Hz. It features a Permanent Split Capacitor motor type (PHASETYPE: 1_PERMANENT SPLIT CA) and Open Air Over (OAO) cooling. The motor has a stator diameter of 5.5 inches and a stack of 1 inch. It is rated with Class B insulation. The motor's dimensions are 7.40 inches in length, 5.60 inches in width, and 5.60 inches in height, with a weight of 13.00 lbs.

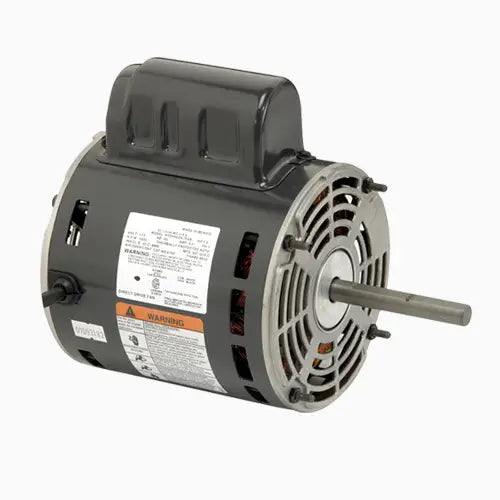

Us Electric Evac Motor 1/6hp 1100rpm 115vac 48y Thru-bolt Mtg 13lbs
Specifications
| Voltage | 115 V |
|---|---|
| Horsepower | 1/6 HP |
| RPM | 1100 RPM |
| Phase | 1 Ph |
| Frame | 48YZ |
| Frequency | 60 Hz |
| Shaft Diameter | 1/2 |
