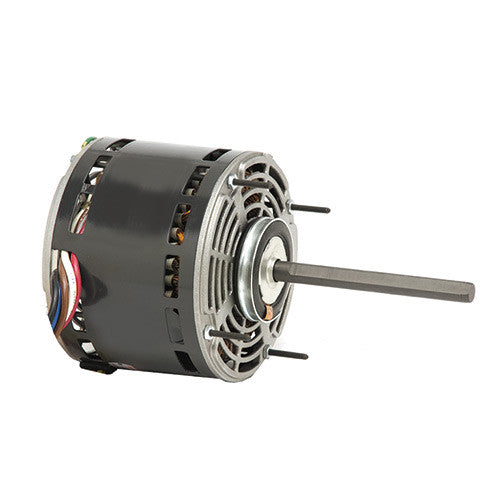

This is a US Motors 1971 model, a 1/4 HP, 208-230V direct drive blower motor operating at 1075 RPM. It is a 3-speed motor with a PSC (Permanent Split Capacitor) design. The motor requires a 7.5 MFD capacitor and draws 1.5 Amps at single phase. It features reversible rotation and an automatic reset thermal overload protector. The motor is designed for continuous duty and air-over applications.
Us Electric Dd Motor 1/4hp 1075rpm 3 Spd 208-230vac 1.5a Fr48y Rnd Slv...(cap = 7.5mfd) 10lbs
Specifications
| Voltage | 208-230 V |
|---|---|
| Horsepower | 1/4 HP |
| RPM | 1075 RPM |
| Phase | 1 Ph |
| Frame | 48Y |
| Frequency | 60 Hz |
| Shaft Diameter | 1/2 |
