The US Motors 5469 is a 1/3 HP, 825 RPM, 208-230V Permanent Split Capacitor motor suitable for fan and blower applications. It operates at 60Hz with 4 speeds and features an Open Air Over enclosure. The motor has a 5.5" stator diameter and a 2.25" stack height. It utilizes self-aligning bearings at both the shaft and opposite ends and has automatic thermal protection. The motor is rated for a 40-degree ambient temperature and rotates CCW at the lead end. It includes a 7.5 MFD run capacitor rated for 370 volts.

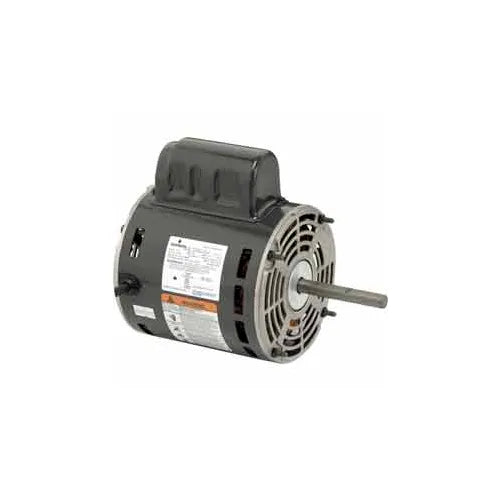

US MOTORS 5469 DD Blower Motor 1/3HP 208-230V 825RPM 1PH 48Y Frame 1/2" Shaft
Specifications
| Voltage | 208-230 V |
|---|---|
| Horsepower | 1/3 / 1/8 HP |
| RPM | 825 RPM |
| Phase | 1 Ph |
| Frame | 48Y |
| Frequency | 60 Hz |
| Shaft Diameter | 1/2 |
| Motor type | PSC |
| Enclosure | OAO |
| Rotation | Reversible |
| Full-load amps | 2.4 A |
| Run capacitor | 7.5 µF / 370 V µF / V |
| Bearings | Sleeve |
| Mounting | Stud |
| Motor diameter | 5.6 in |
| Shaft length | 4-1/2 in |
| Thermal protection | Auto |
