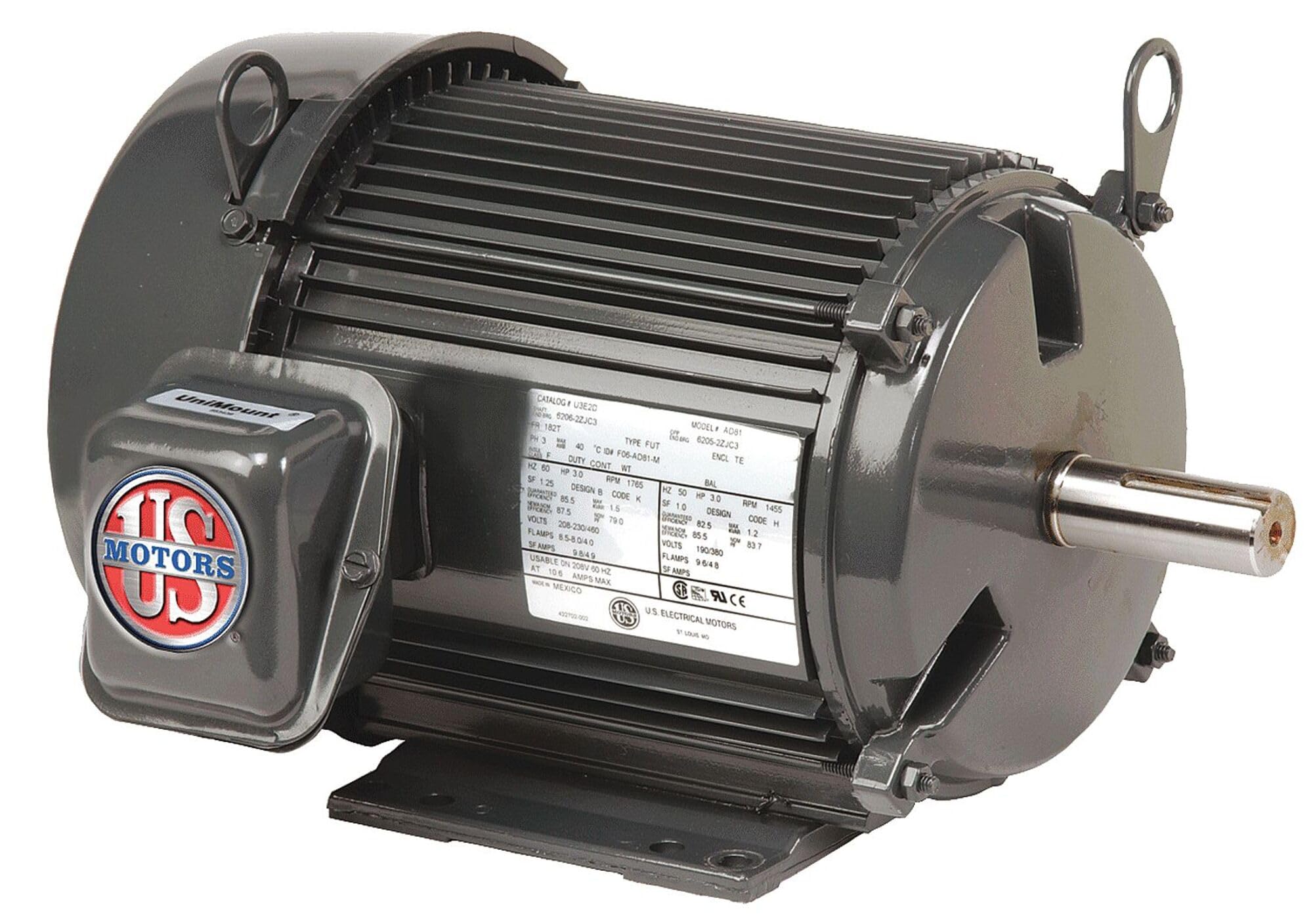

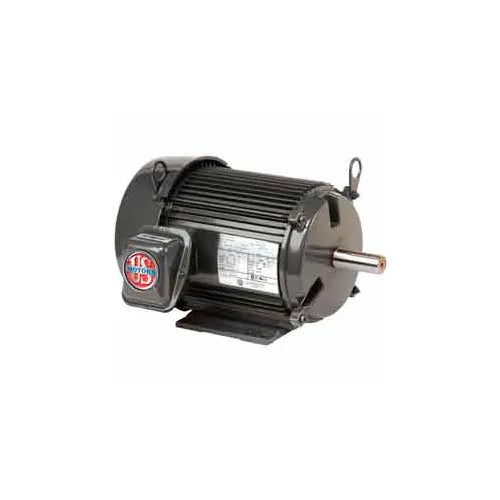

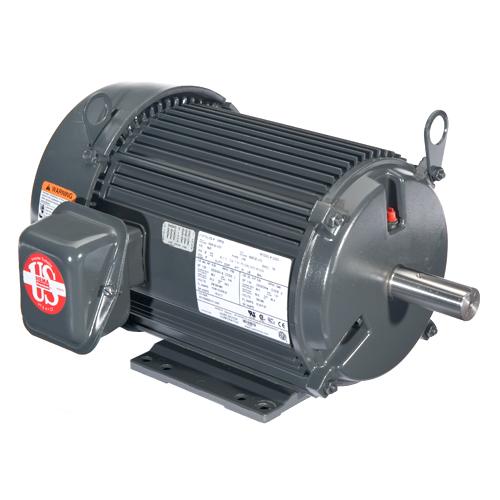

US MOTORS U5P2D TEFC Motor 5HP 208-460V 3PH 1760RPM 184T 1-1/8" Shaft
US MOTORS U5P2D TEFC Motor 5HP 208-460V 3PH 1760RPM 184T 1-1/8" Shaft

US MOTORS U5P2D TEFC Motor 5HP 208-460V 3PH 1760RPM 184T 1-1/8" Shaft

Trade-account pricing & availability.

Open a commercial account, or contact us, for pricing, availability, and pickup at Laval, Ville Saint-Laurent and Longueuil.

Availability by branch

  • Laval In stock
  • Longueuil In stock
  • Saint-Laurent Not available
Open an account Contact us

Experience reliable and efficient power with the US Motors U5P2D Unimount TEFC motor. Designed for demanding applications, this 5 HP, 3-phase motor features a Totally Enclosed Fan Cooled (TEFC) enclosure for protection in harsh environments. With premium efficiency and a robust construction, it's built to last and deliver consistent performance.

Technical Details

The US Motors U5P2D is a 5 HP, 3-phase motor operating at 1760 RPM. It features a TEFC enclosure, 184T frame, and is designed for multi-voltage compatibility, running on 208V, 230V, or 460V. The motor offers a high efficiency of 90.2% and a service factor of 1.25. It is equipped with ball bearings and has a maximum ambient temperature rating of 40° C. The motor is reversible and has a single speed.

Technical Specifications

Voltage 208
Horsepower 5
RPM 1760
Phase 3
Frame Size 184T
Enclosure TEFC
Frequency 50/60
Full Load Amps 13.6-12.3/6.2
Mounting Base
Service Factor 1.15
Insulation Class F
Rotation Direction Reversible
