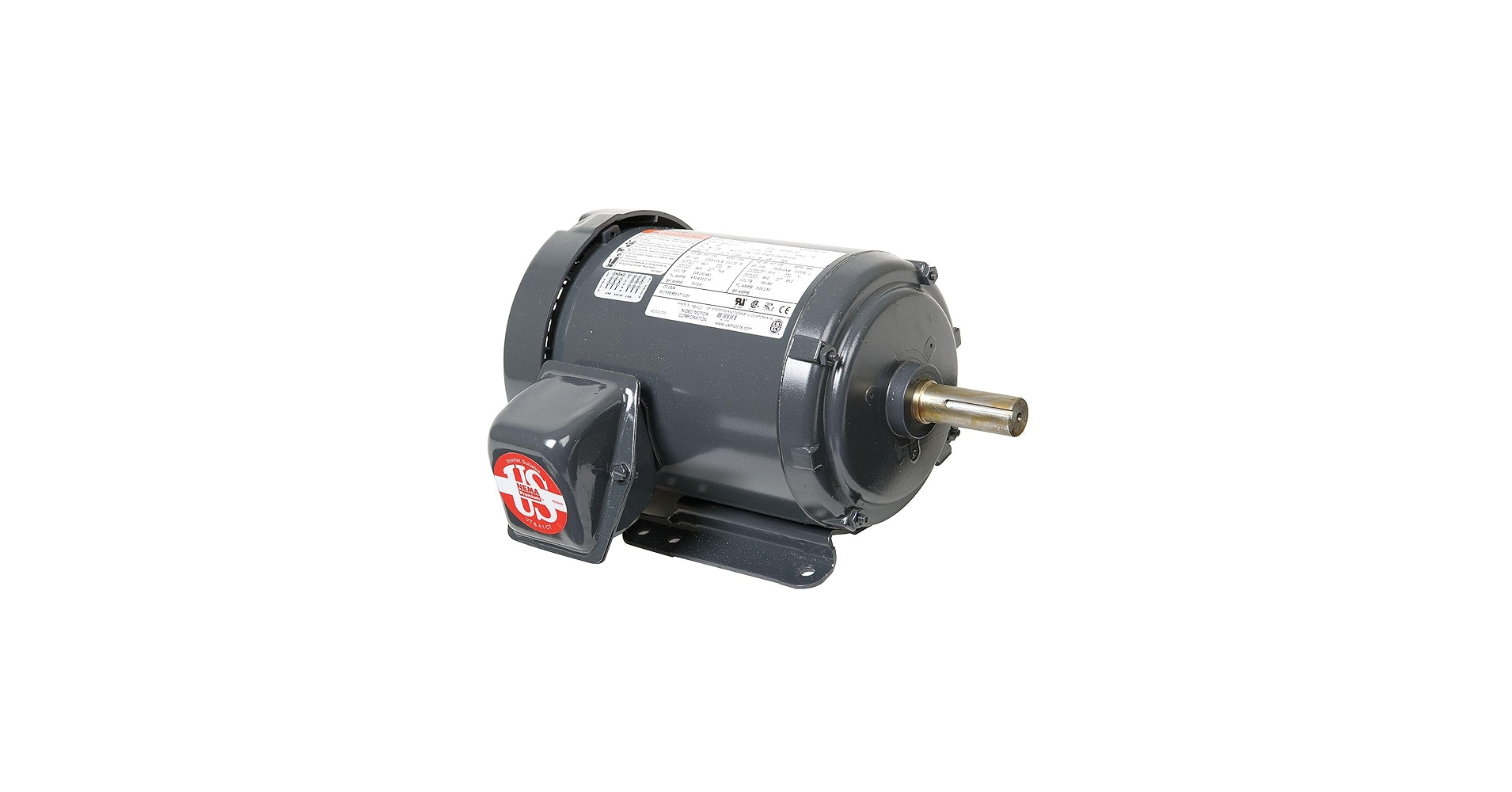

US Motors Unimount® TEFC, 1 HP, 3-Phase Motor, U1P2G

The US Motors Unimount® TEFC motor is a robust 1 HP, 3-Phase general purpose industrial motor designed for a wide range of applications including fans, blowers, compressors, and pumps. Featuring Class F insulation with Class B rise at full load on 60 Hertz sine wave power, it ensures reliable thermal protection. The motor boasts NEMA Design B performance and includes features like a shaft slinger on the pulley end for contaminant protection, full 50 & 60 Hertz operating data on the nameplate, and regreasable shaft-end bearings for frames 180 and up. It is suitable for Wye-Delta start on larger frames and offers dual voltage ratings for part winding start on low voltage.

Technical Details

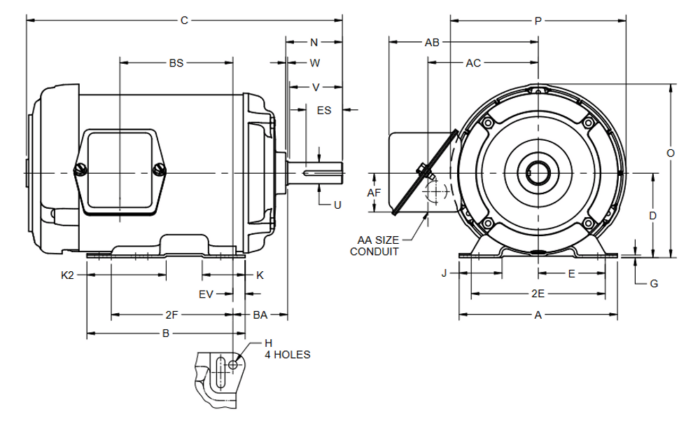

This US Motors Unimount® motor, model U1P2G, is a 1 HP, 3-Phase, 575V motor operating at 1800 RPM. It features a TEFC enclosure, 143T frame, and a 1.1 Full Load Amps rating. The motor has an efficiency of 85.5% and a service factor of 1.25. Its "C" dimension is 12.8 inches, and it weighs approximately 40 lbs. The insulation class is F, and it is designed for a maximum ambient temperature of 40° C.

Technical Specifications
