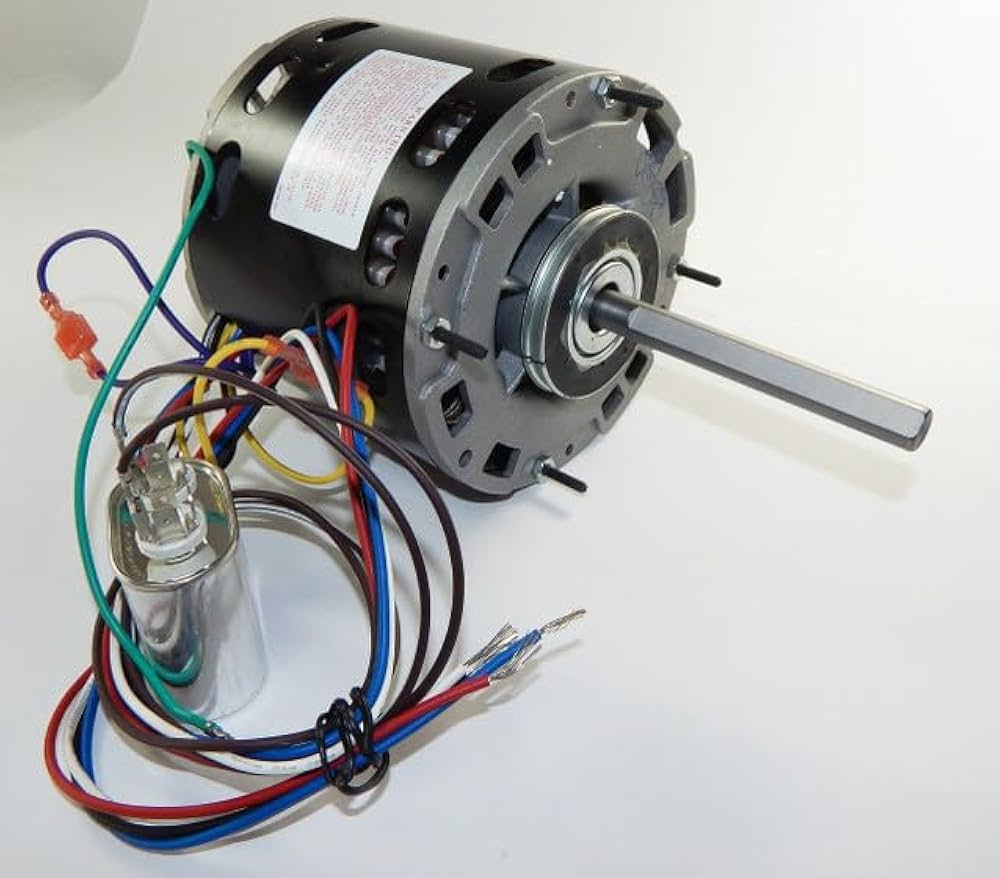

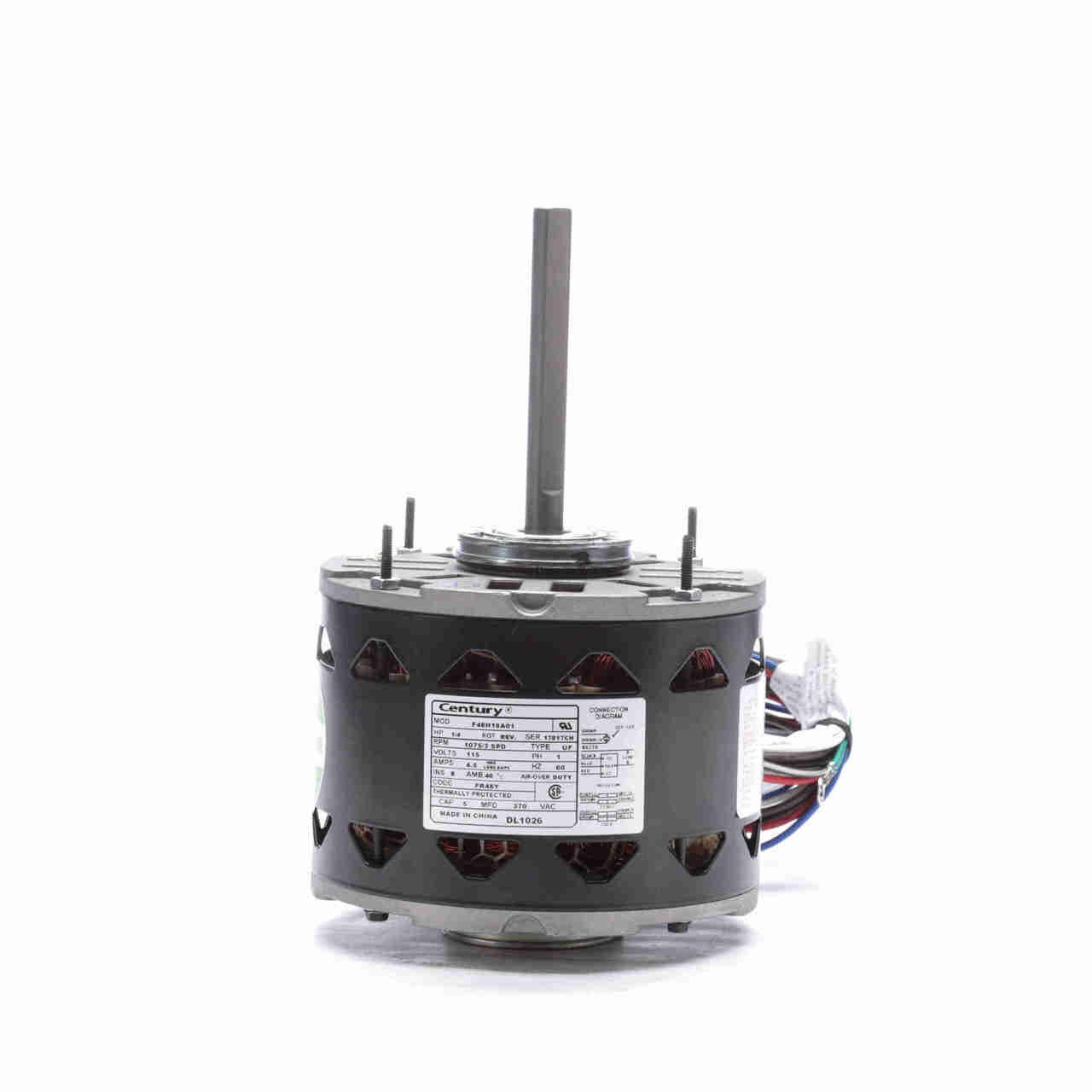

DL1026 Century 1/4 hp 1075 RPM 3-Speed 48 Frame 115V Direct Drive Furnace Motor

This Century Direct Drive Furnace Motor offers reliable performance for your HVAC needs. Featuring a 1/4 HP motor with 1075 RPM and 3-speed capability, it's designed for continuous duty and operates at 115V. The motor boasts an 'Air Over' duty rating, automatic thermal protection, and Class B insulation for durability. Its reversible rotation and extended studs on the shaft end, along with resilient ring mounting and belly band options, provide versatile installation. The rolled steel frame ensures robustness, and the motor comes with 26" leads for convenient connection. Includes a one-year warranty.

Technical Details

The Century DL1026 is a 1/4 HP, 115V direct drive furnace motor with 3 speeds and a maximum RPM of 1075. It features a 48Y frame, Permanent Split Capacitor (PSC) electrical type, and an 'Air Over' duty rating. The motor is thermally protected automatically and has Class B insulation, suitable for a 40°C ambient temperature. It has 6 poles, a 1/2" diameter flat shaft with a 4.0" extension, and reversible rotation. Mounting options include extended studs and resilient rings, with a belly band capability. The motor uses ball bearings and has 26" leads.
