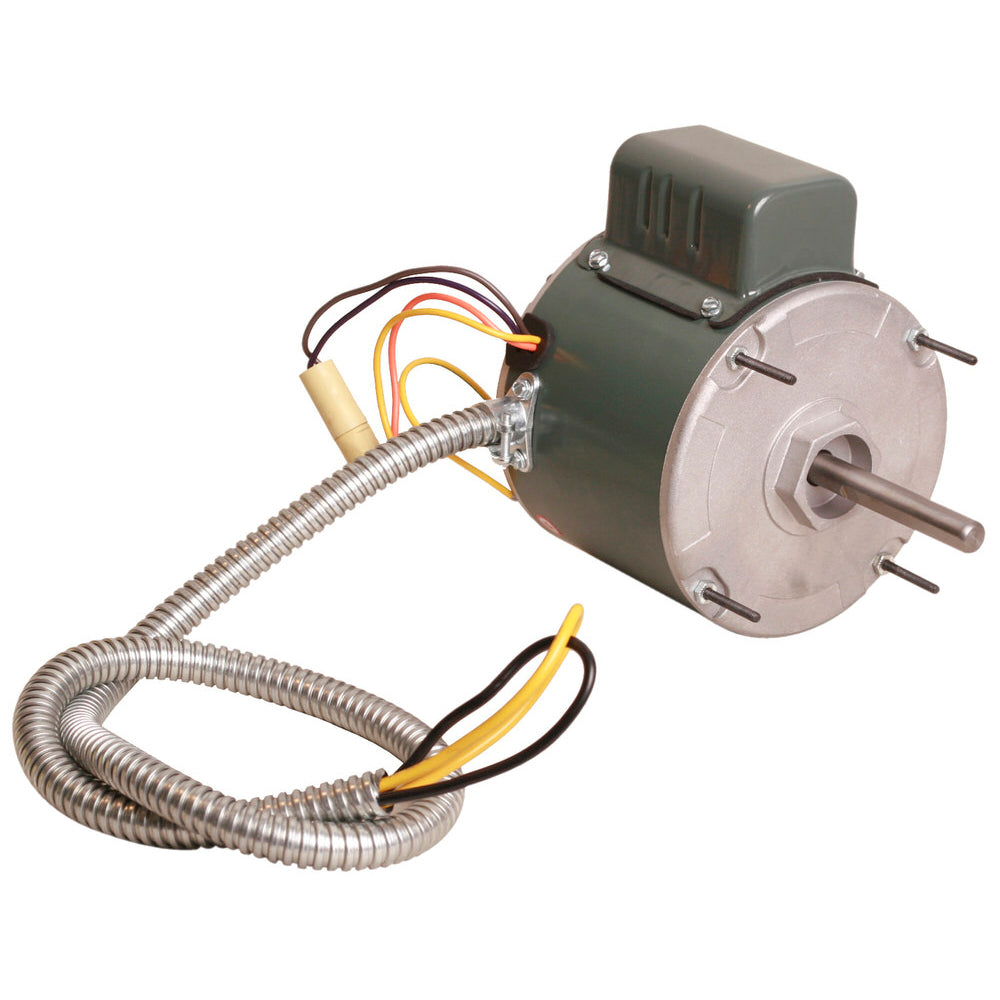

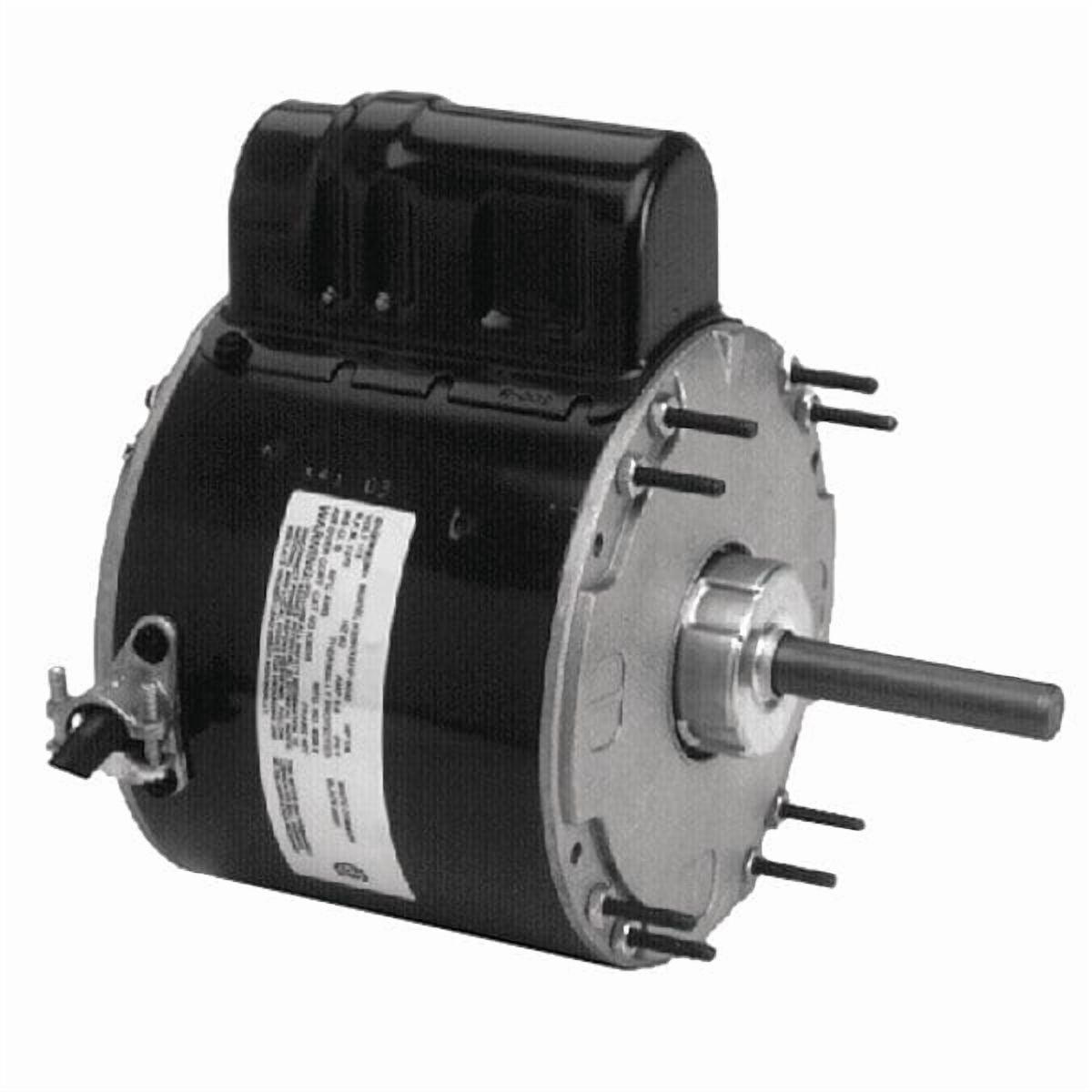

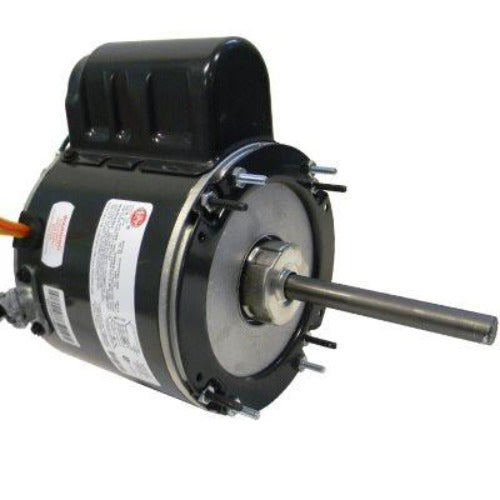

U.S. Motors Motor, 1/3 HP, 1075 RPM, 115V, 60Hz, 48Y

This U.S. Motors 1/3 HP motor is designed for reliable performance in unit heaters, oil burners, and other shaft-mounted fan and blower applications. Operating at 1075 RPM and 115V, it features a totally enclosed, air-over enclosure for protection in dusty and dirty environments. The reversible rotation and ball bearings ensure versatility and longevity. It includes a capacitor and is built with Class 'B' insulation for durability.

Technical Details

The U.S. Motors 9036 is a single-phase, permanent split capacitor motor with a 1/3 HP rating. It operates at 1075 RPM, 115V AC, and 60 Hz, with a full load amperage of 5.00 A. The motor features a 48Y frame size and a totally enclosed air-over enclosure. It has a shaft size of 1/2" x 3.2" and utilizes ball bearings. Mounting is achieved via studs, and the capacitor is included. The motor is reversible and has a continuous duty cycle with a maximum ambient temperature of 40 degrees C. Its service factor is 1.
